For hanging gas boiler
FS12、FS14 and FS-Y12 mainly used in the second-level heat exchanger for the Wall-hung stove, is a Wall-hung stove manufacturer custom products with high heat transfer efficiency and long service life.
For hanging gas boiler
FS12、FS14 and FS-Y12 mainly used in the second-level heat exchanger for the Wall-hung stove, is a Wall-hung stove manufacturer custom products with high heat transfer efficiency and long service life.
Products description
Products description

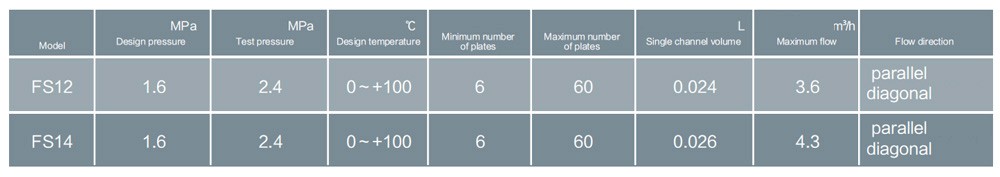

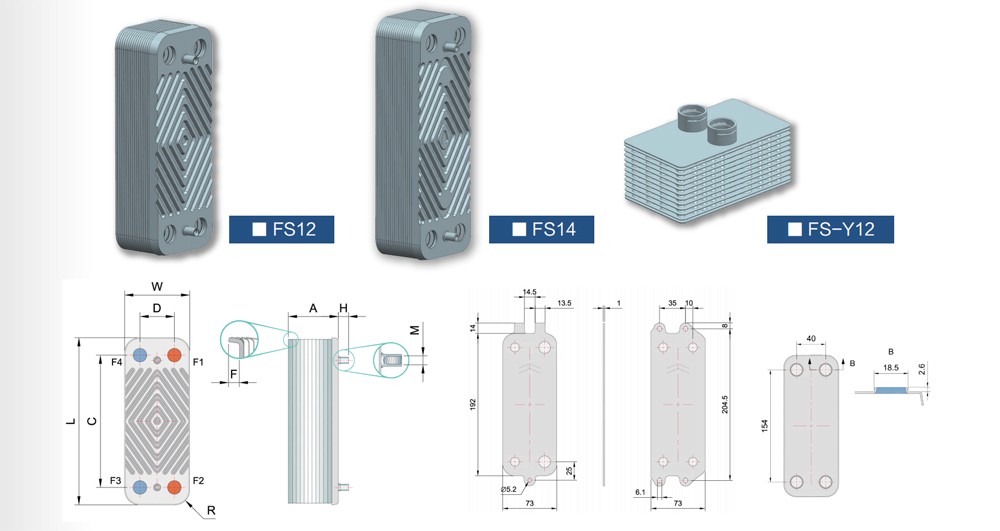

1. FS12 are copper-based brazing heat exchangers.
1. FS12 are copper-based brazing heat exchangers.
Mark:
‘n’is the number of plates.
M5 bolt tightening torque is less than 7 N·m.
Weight data does not include connections.
Plate material: 304 or 316L.

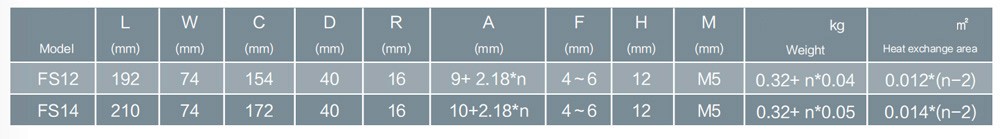

Mark：
‘n’is the number of plates.
M8 bolt tightening torque is less than 12 N·m.
Weight data includes connection, excluding foot and eye.
FS14, 15, 20 of front and rear plate have flat or corrugated type.
There are two choices of plate material: 304 and 316L.

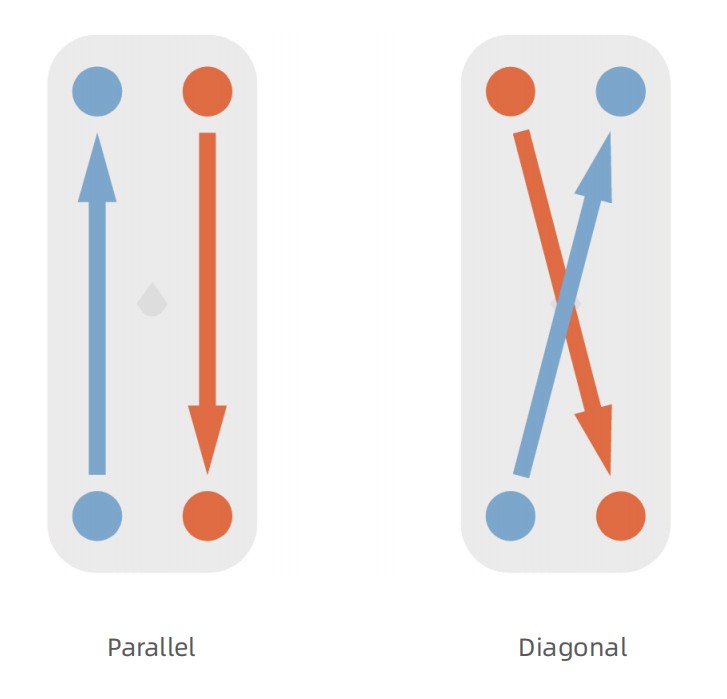

Connection introduction
Mark:

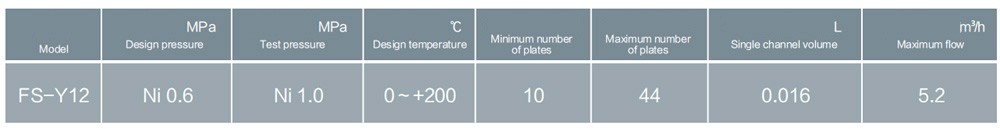

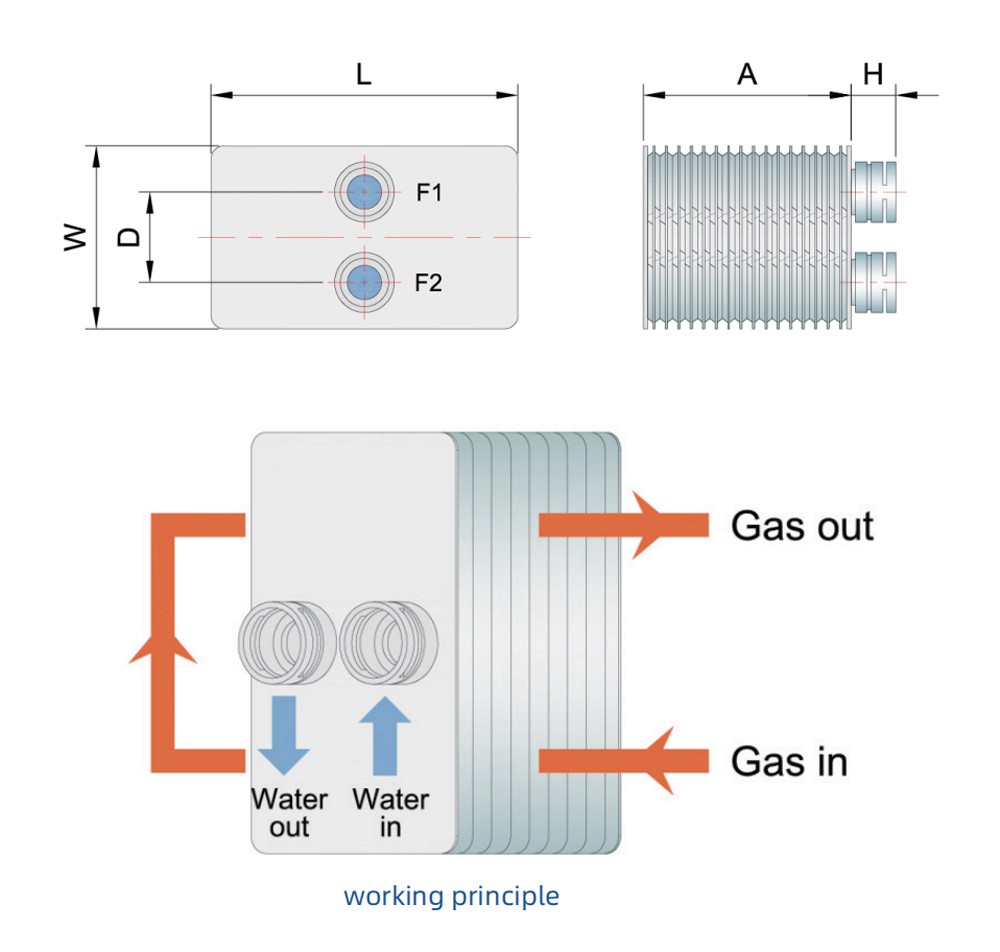

1.FS-Y12 are nickel-based brazing heat exchangers;
2.There are only one level of work pressure, S-level is 0.6MPa.
Mark:
1.FS-Y12 are nickel-based brazing heat exchangers;
2.There are only one level of work pressure, S-level is 0.6MPa.
Mark
‘n’is the number of plates.
Weight data includes connections.
Plate material: 316L.

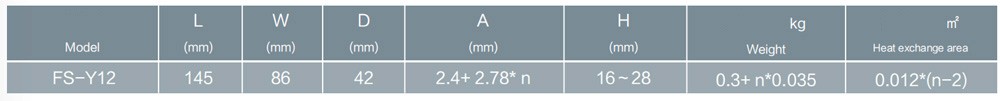

Mark
‘n’is the number of plates.
Weight data includes connections.
Plate material: 316L.
